Robotic Rivet Nut Gun_Riveting Spindle for Unmanned Production Lines, External Mount - CHANRUI
Brand: CHANRUI
[Pulling Force]: 19000N
[Riveting Capacity]: M4~M12mm
[Applicable Rivet Nut Types]: Steel, Iron, Stainless Steel
Vibratory bowl aligns rivet nuts → linear feeder → rivet nut distributor → rivet nuts automatically loaded into rivet nut gun → robotic arm holds fixture and product, places under the rivet nut gun, sets orientation and height, then sends riveting signal → rivet nut gun automatically presses down
+86 13268883882
Product IntroductionCHANRUI

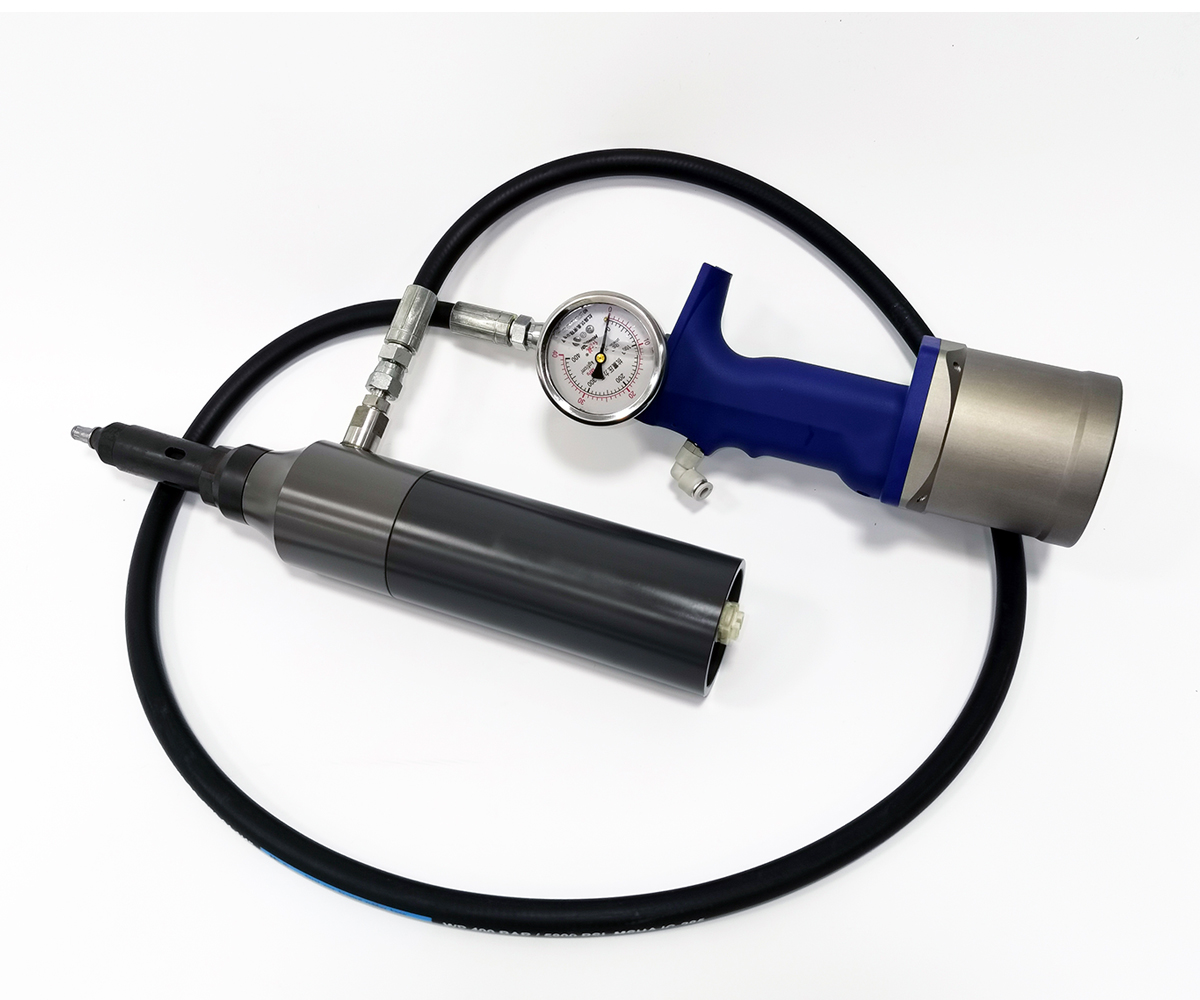

Robotic Rivet Nut Gun (External-Mount Riveting Spindle) 【Product Overview】
The CHANRUI robotic rivet nut gun is an external-mount automatic riveting spindle designed for industrial robots. It can be mounted at the end of a robotic arm and works with the robot to achieve unmanned rivet nut operations, creating a genuinely unmanned production line.
The equipment uses a modular, all-around external-mount mechanical design for stable collaboration with robots. Optional real-time monitoring and data storage functions let riveting data be reviewed easily. An automatic alarm triggers when riveting is defective, helping factories achieve full-process traceability of riveting quality.
Robotic Rivet Nut Gun (External-Mount Riveting Spindle) 【Key Features】
| No. | Core Feature | Description |
|---|---|---|
| 1 | Robot Compatible | External-mount riveting spindle, compatible with mainstream robot arms |
| 2 | Unmanned Operation | Works with robots for automatic riveting, replacing manual work |
| 3 | Data Monitoring | Optional real-time monitoring and data storage |
| 4 | Anomaly Alarm | Automatic alarm on defective riveting, with a controllable yield rate |
| 5 | Modular Design | Compact structure, easy to install and maintain |
Robotic Rivet Nut Gun (External-Mount Riveting Spindle) 【Technical Data】
| Parameter | Specification | Description |
|---|---|---|
| Brand | CHANRUI | Robotic riveting cell |
| Mounting Method | External-mount | Fits mainstream robotic arm ends |
| Pulling Force | 19000N | — |
| Riveting capacity | M4~M12mm | — |
| Applicable Nuts | Steel, iron, stainless steel rivet nuts | Customizable specifications |
| Control Method | Robot collaborative control | Automatic positioning of orientation and height, press down to start riveting |
| Data Functions | Real-time monitoring, data storage, alarm functions | Optional |
| Service Support | Integration technical support is provided | Customized solutions by workstation |
Note: Robotic riveting cells are project-based solutions tailored to workpiece positions, cycle times and production line layouts. The actual configuration is subject to integration solution confirmation. Customers nationwide can book on-site assessment and trial.
Robotic Rivet Nut Gun (External-Mount Riveting Spindle) 【Typical Applications】
Automated production lines in automotive parts, 3C electronics, home appliances, sheet metal and other industries requiring riveting data traceability and unmanned upgrades.
Robotic Rivet Nut Gun (External-Mount Riveting Spindle) 【Service Commitment】
CHANRUI provides robotic riveting integration solutions and technical support. Welcome to contact us for a production line upgrade assessment.
