Auto-Feed Rivet Gun_Dual-Gun Model_Twin-Gun Operation Doubles Output - CHANRUI
Brand: CHANRUI
[Riveting Capacity]: 12800N
[Working Voltage]: 220V 50Hz
[Overall Dimensions]: 555*420*400mm
Auto-feed rivet gun dual-gun, German high-precision machining technology. Rivet gun cylinder inner wall grinding precision below 0.4, cylinder uses forged pipeline with 1.6x strength increase. Shipment failure rate controlled below 0.3% over 6 years. Original imported accessories, German imported carbon steel three-jaw with lifespan up to 6 million cycles. CHANRUI automatic riveting machine is efficient, stable, easy to operate, with counting function.
+86 13268883882
Product IntroductionCHANRUI

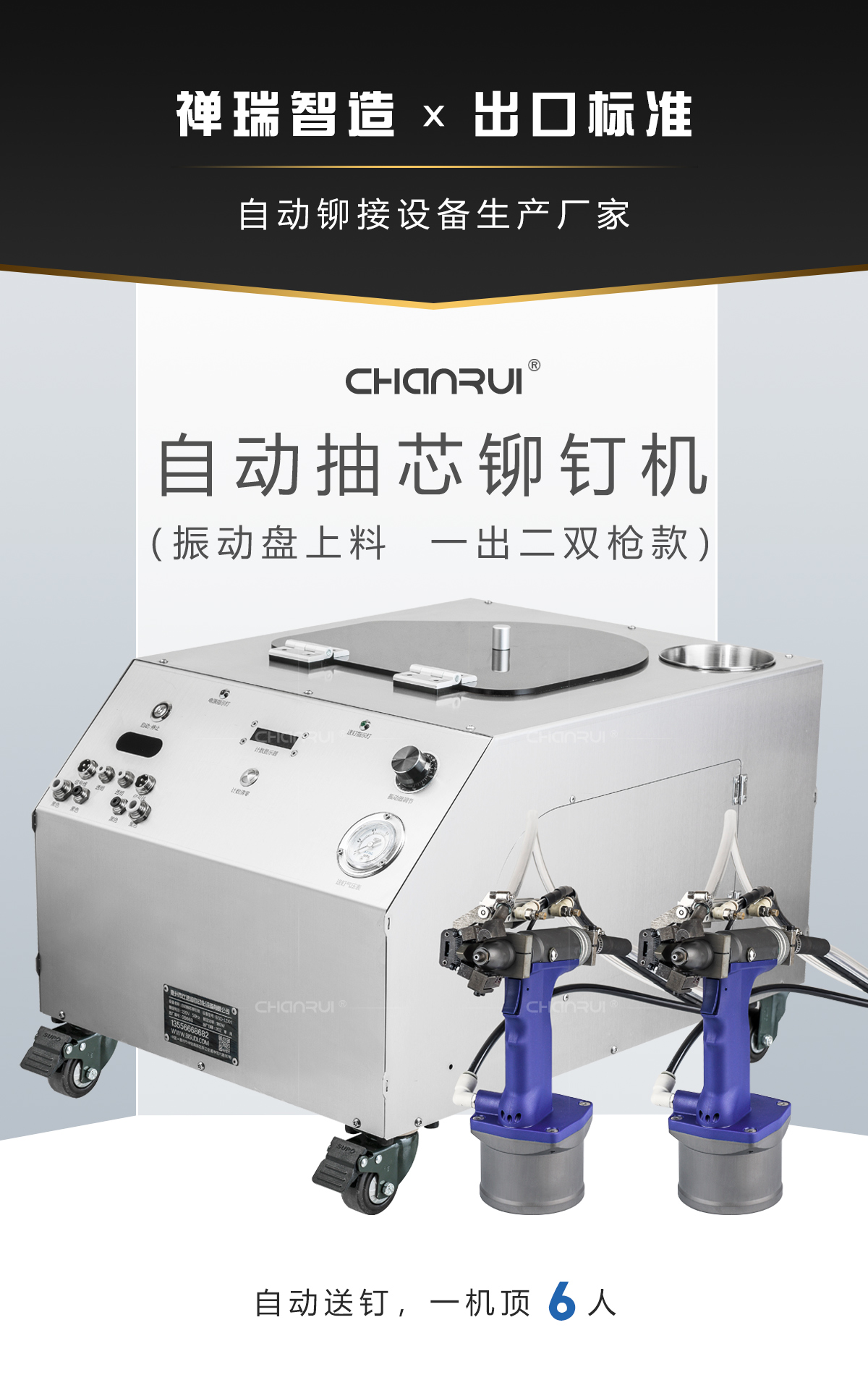

Auto-Feed Rivet Gun (One-to-Two Dual-Gun Model) 【Product Overview】
The CHANRUI auto-feed rivet gun one-to-two dual-gun model uses a single main unit to supply two rivet guns at once. Dual-station synchronous riveting doubles efficiency directly, and suits high-output production lines and multi-person collaborative work scenarios.
The two guns feed independently without interference. The auto-refill design ensures continuous operation with no downtime. The equipment is handheld and flexible, highly versatile, and comes from a source manufacturer via direct supply. It is the preferred riveting automation solution for those pursuing high output and fast ROI.

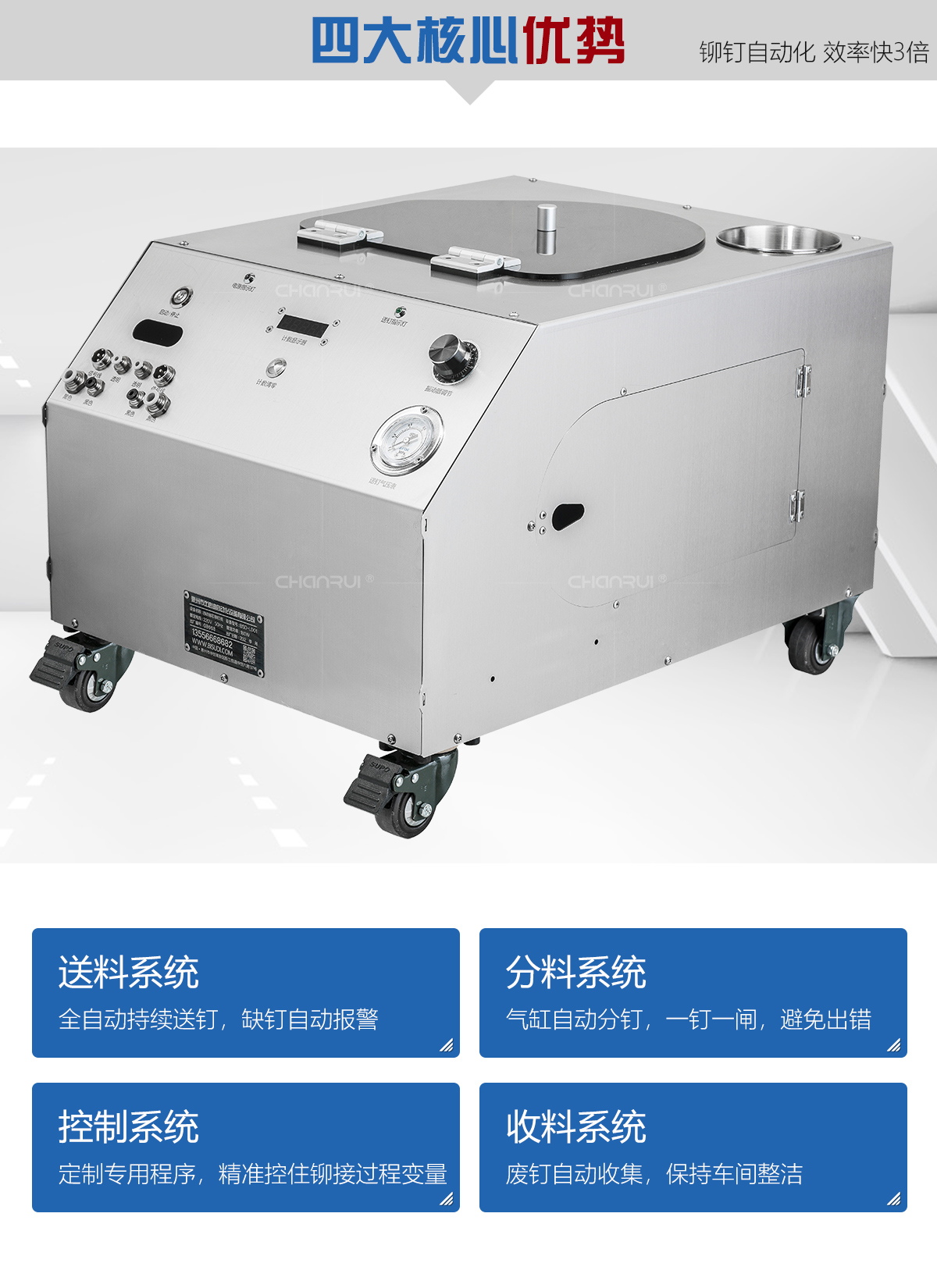

Auto-Feed Rivet Gun (One-to-Two Dual-Gun Model) 【Key Features】
| No. | Core Feature | Description |
|---|---|---|
| 1 | One-to-Two Dual Gun | One main unit, two guns, dual-station synchronous operation |
| 2 | Independent Feed | Dual guns feed separately, no interference, no jamming |
| 3 | Auto-Refill | Continuous riveting with automatic rivet refill, stable efficiency |
| 4 | Efficiency Doubled | Single unit output close to two devices, fast ROI |
| 5 | Flexible & Universal | Handheld design, suitable for non-fixed-point work |
Auto-Feed Rivet Gun (One-to-Two Dual-Gun Model) 【Technical Data】
| Parameter | Specification | Description |
|---|---|---|
| Brand | CHANRUI | Source manufacturer direct sales |
| Number of Gun Heads | 2 (one-to-two dual gun) | Dual-gun parallel riveting, capacity doubled |
| Riveting Capacity | 12800N | Standard model pulling force, customizable specifications |
| Cycle Speed | Approx. 80 cycles/min per gun | Dual-gun operation capacity doubled |
| Feed Method | Compressed air automatic delivery | — |
| Applicable Rivets | Aluminum, iron, stainless steel blind rivets | Customizable specifications |
| Working Voltage | 220V / 50Hz | — |
| Main Unit Dimensions | 555×420×400mm | Workbench and fixtures designed by workpiece |
| Counting Function | Digital counting display | — |
| Manufacturing Process | Cylinder inner wall grinding precision below 0.4 | Forged pipeline, strength increased by approx. 1.6x |
| Reliability | Shipment failure rate approx. 0.3% (6-year statistics) | German imported carbon steel three-jaw lifespan approx. 6 million cycles |
| Warranty Service | 1-year warranty | Free nationwide door-to-door delivery |
Note: The above are common parameters of the standard model. The actual configuration varies with rivet specifications, pulling force and non-standard workload, subject to solution confirmation. Customers nationwide can book a free on-site trial to verify with the actual cycle time and yield rate.
Auto-Feed Rivet Gun (One-to-Two Dual-Gun Model) 【Typical Applications】
Dual-person collaborative stations and high-output batch riveting across computer cases, sheet metal, home appliances, hardware products and other industries.
Auto-Feed Rivet Gun (One-to-Two Dual-Gun Model) 【Service Commitment】
CHANRUI, a source manufacturer, provides free on-site trials. Dual-gun capacity is verified on-site. Welcome to consult us for customization.
