Automatic Riveting Machine_Rivet Gun_Lighting Industry Riveting Solution - CHANRUI
Brand: CHANRUI
[Riveting Force]: 12800N
[Working Voltage]: 220V 50Hz
[Overall Dimensions]: 555*420*400mm
CHANRUI automatic riveting machine, built with German high-precision machining technology. The rivet gun cylinder inner wall grinding precision reaches below 0.4; the cylinder uses forged piping with 1.6x increased strength. Shipping failure rate controlled below 0.3% over 6 years. Original imported accessories, German-imported carbon-steel three-jaw with a service life of up to 6 million cycles. CHANRUI automatic riveting machine is efficient, stable, easy to operate, and has a counting function.
+86 13268883882
Product IntroductionCHANRUI

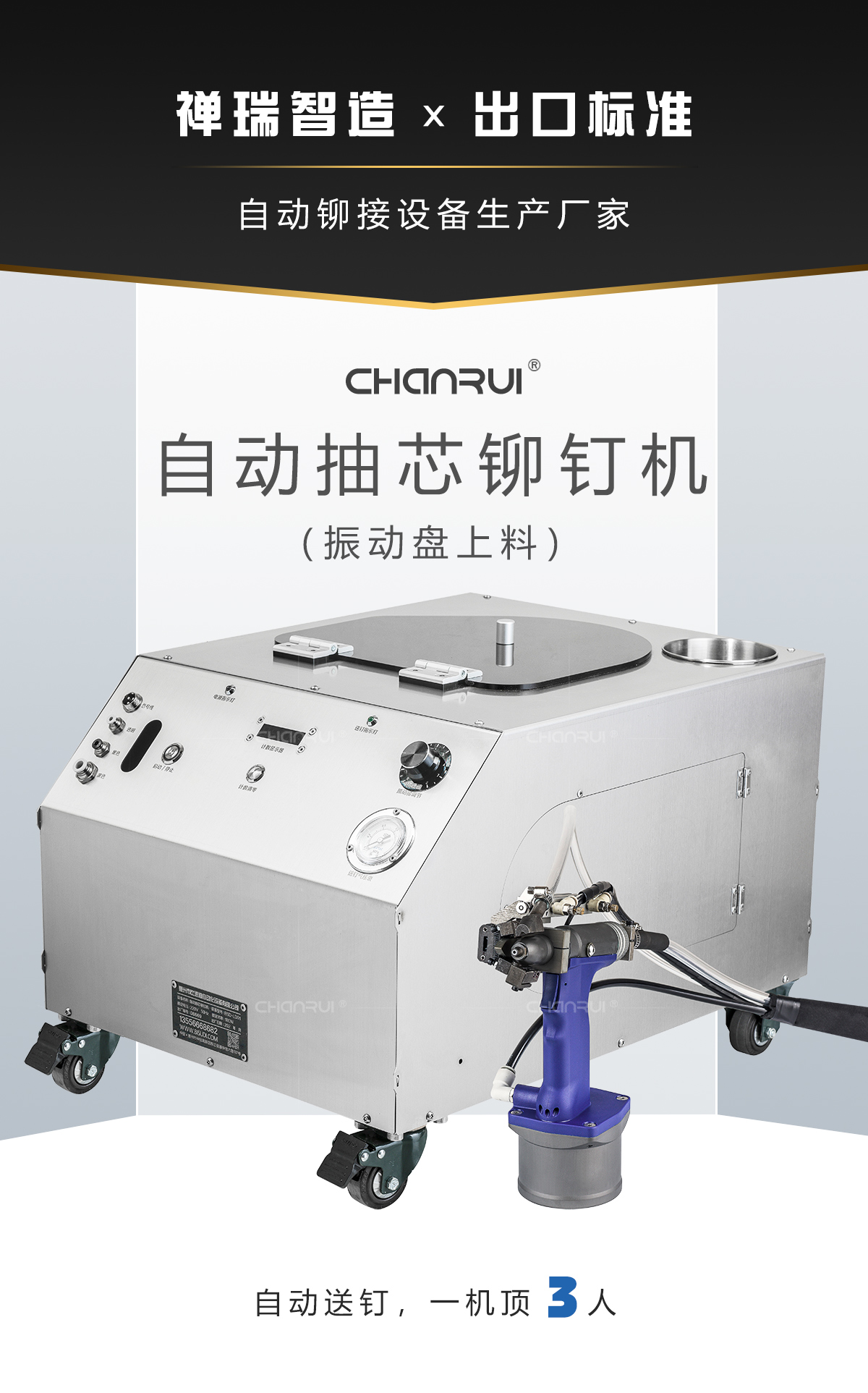

Automatic Riveting Machine 【Product Overview】
Riveting processes for lamp bodies, brackets and heat sinks often involve large quantities and diverse specifications, while manual riveting is inefficient and quality is unstable. CHANRUI automatic riveting machines deliver a complete riveting equipment solution for the lighting industry: auto-feeding, fast riveting, compatible with blind rivet riveting of aluminum and iron parts.
The equipment is handheld and flexible, highly versatile and adaptable to non-fixed-point work scenarios. Lighting factories can upgrade manual riveting to automated operations without replacing skilled workers, markedly raising production capacity and yield.

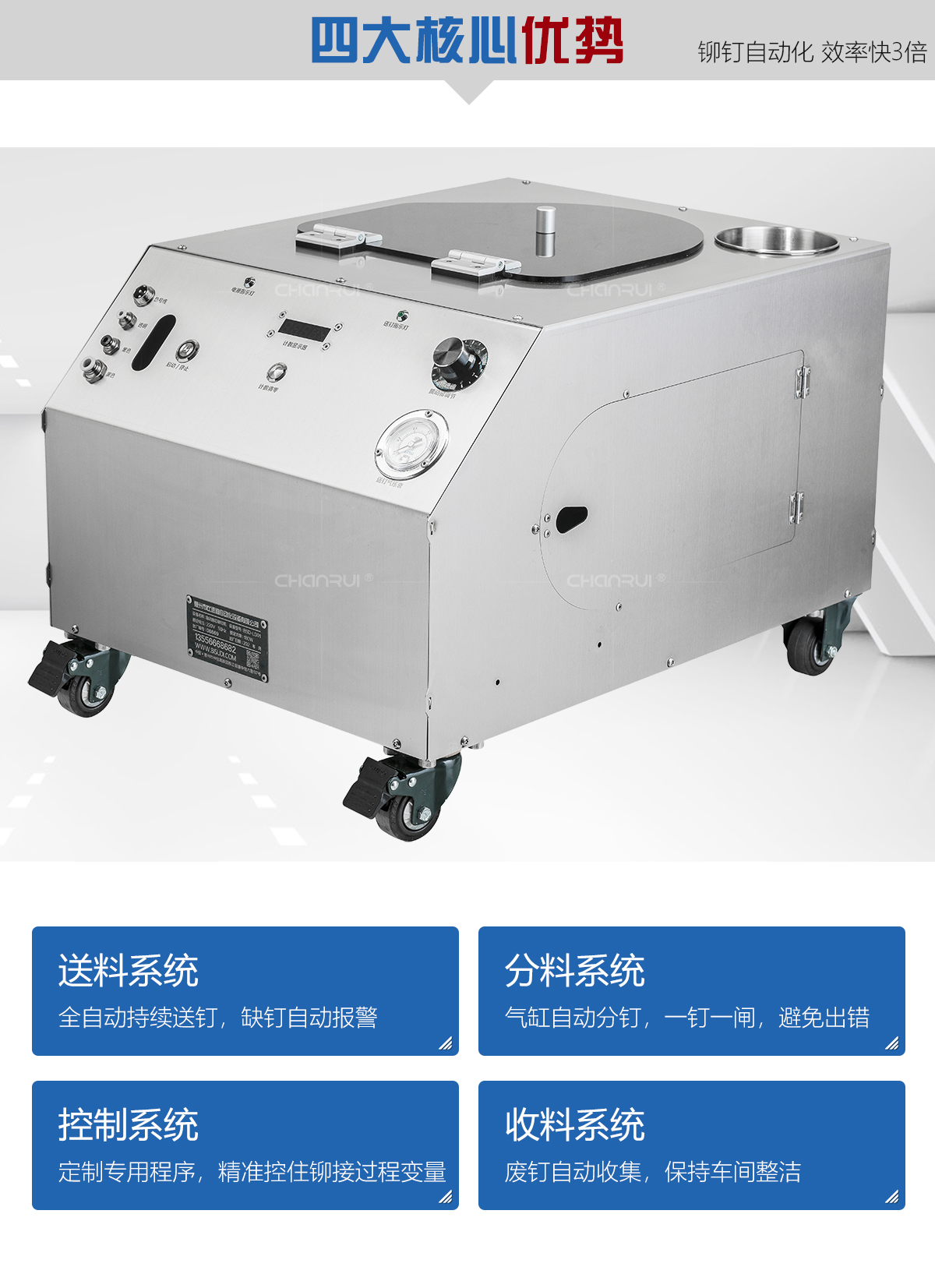

Automatic Riveting Machine 【Key Features】
| No. | Core Feature | Description |
|---|---|---|
| 1 | Lighting Adapted | Highly optimized for riveting lamp bodies, brackets and heat sinks |

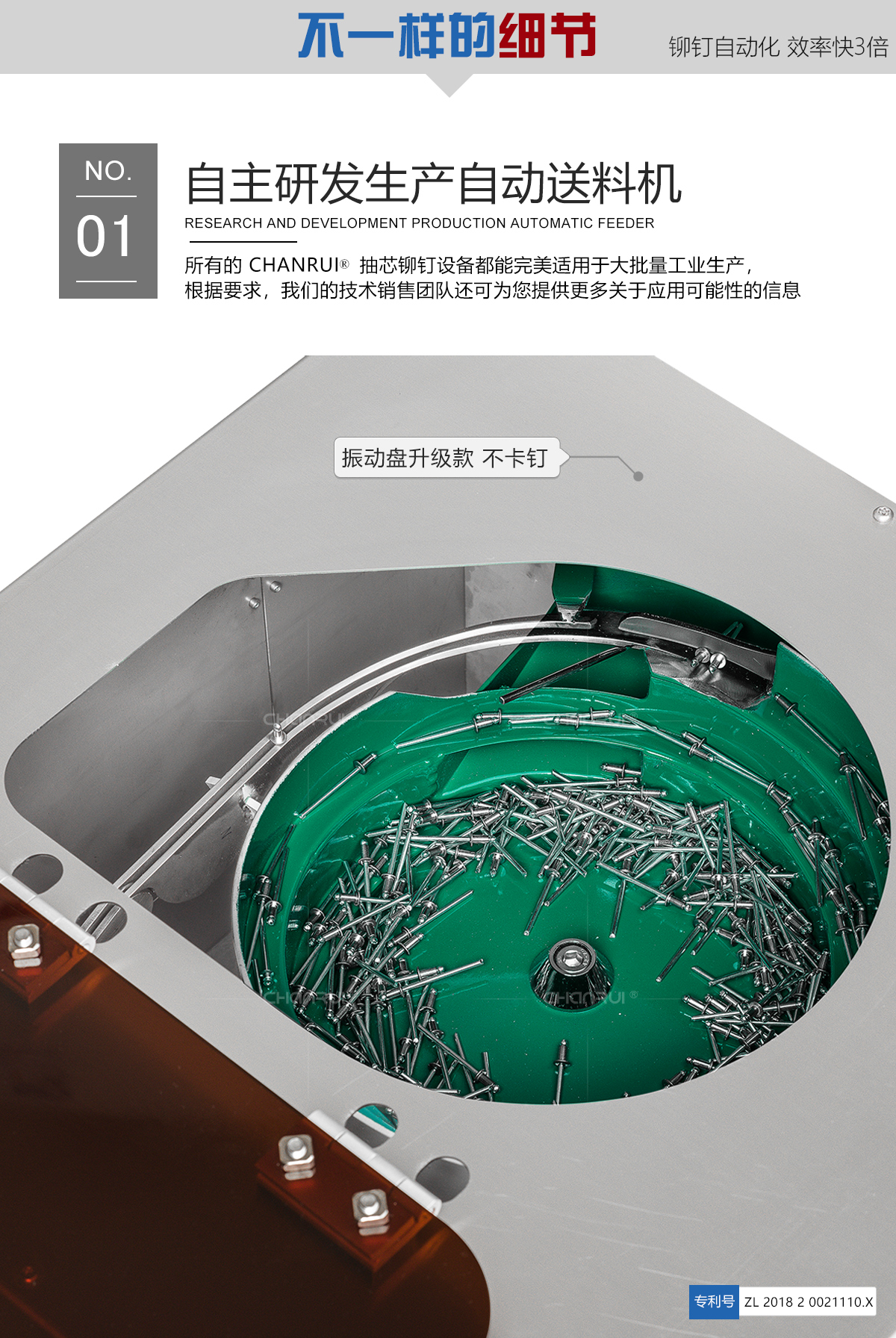

| 2 | Auto-Feeding | Rivets are automatically delivered to the gun nozzle, raising work efficiency |

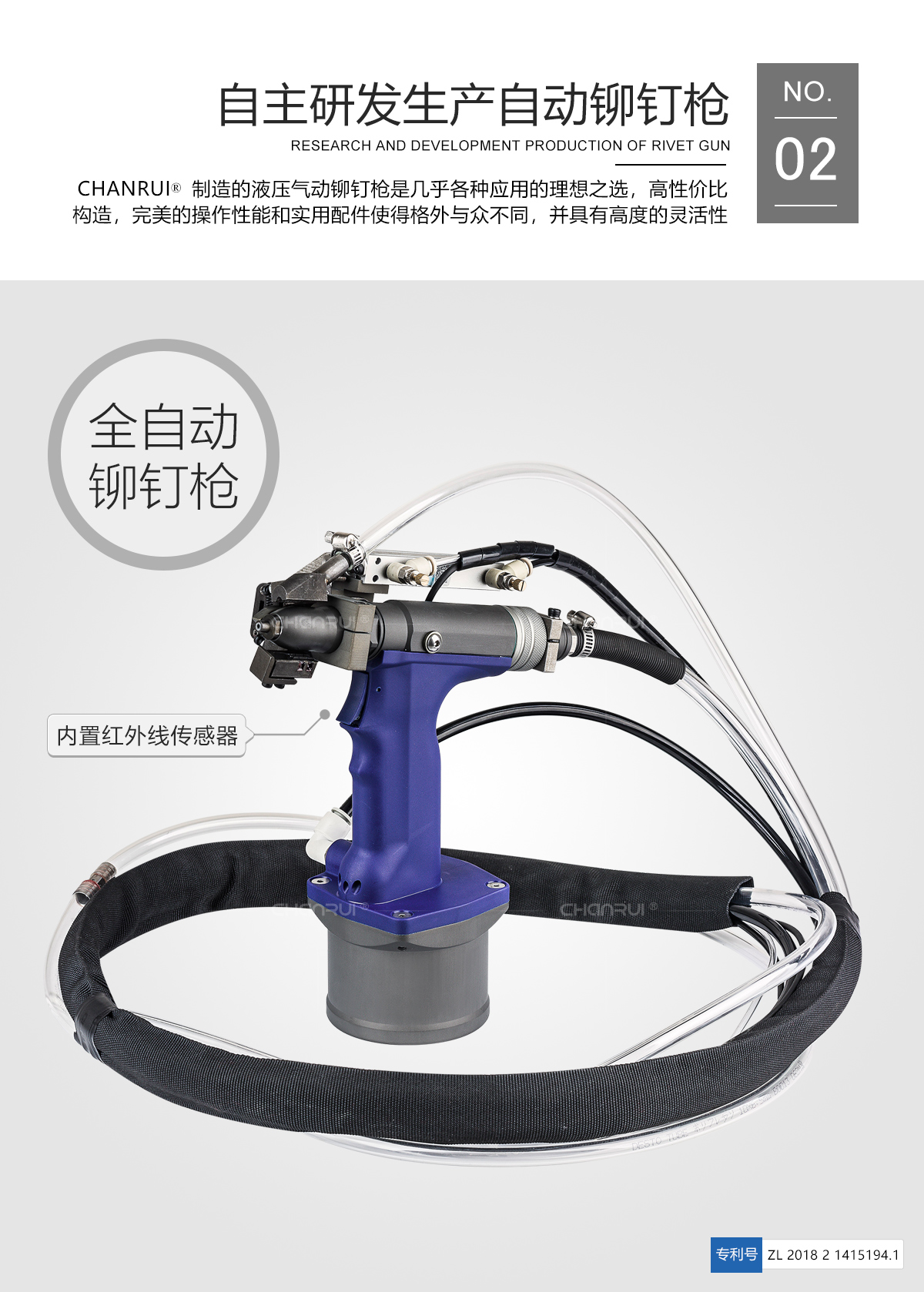

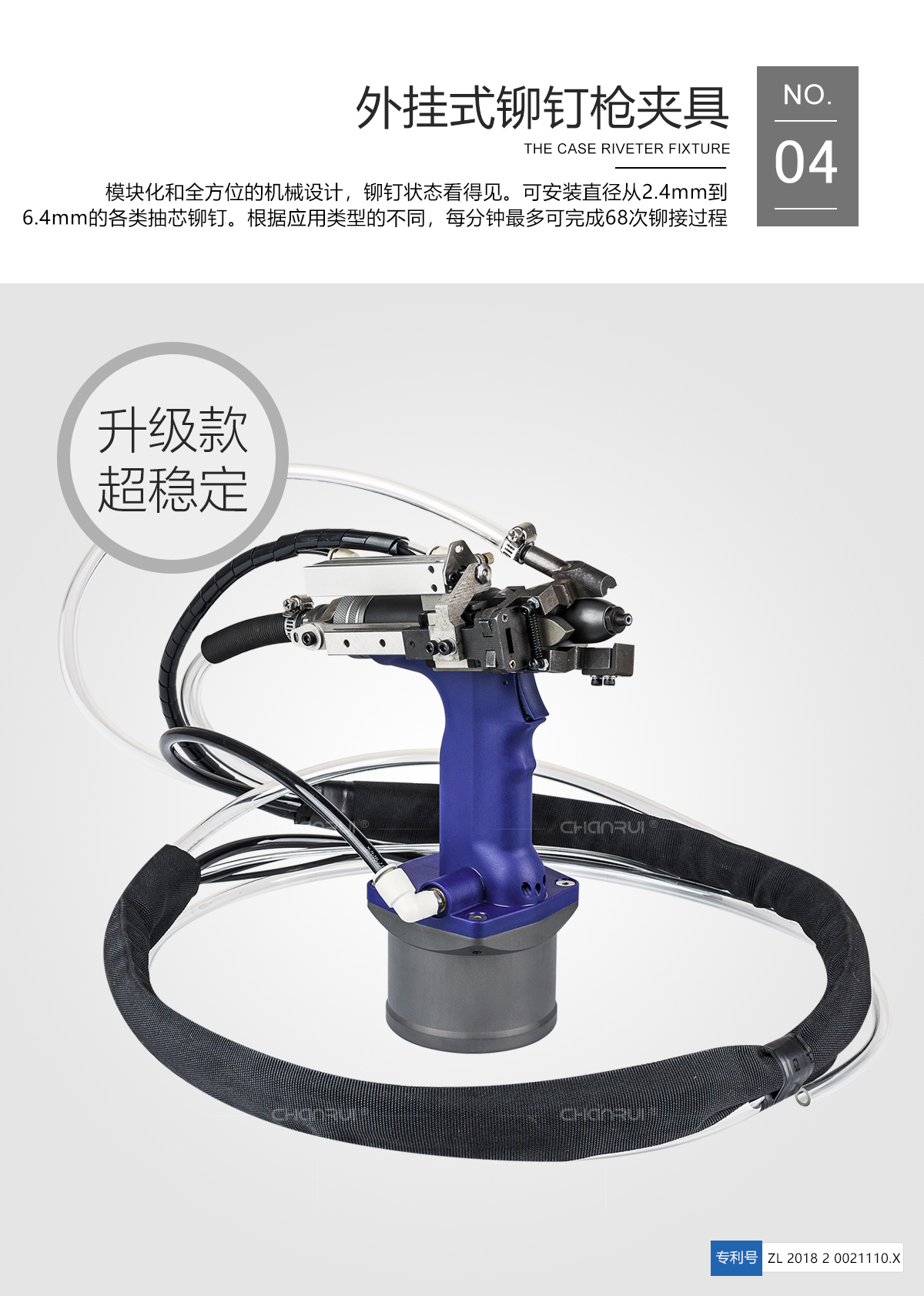

| 3 | Handheld Flexibility | Lightweight gun body, suited to non-fixed-point riveting |
| 4 | Intelligent Counting | Quantity statistics with error-proofing, ensuring riveting quality |
| 5 | Source Manufacturer | Rich lighting-industry cases and mature solutions |

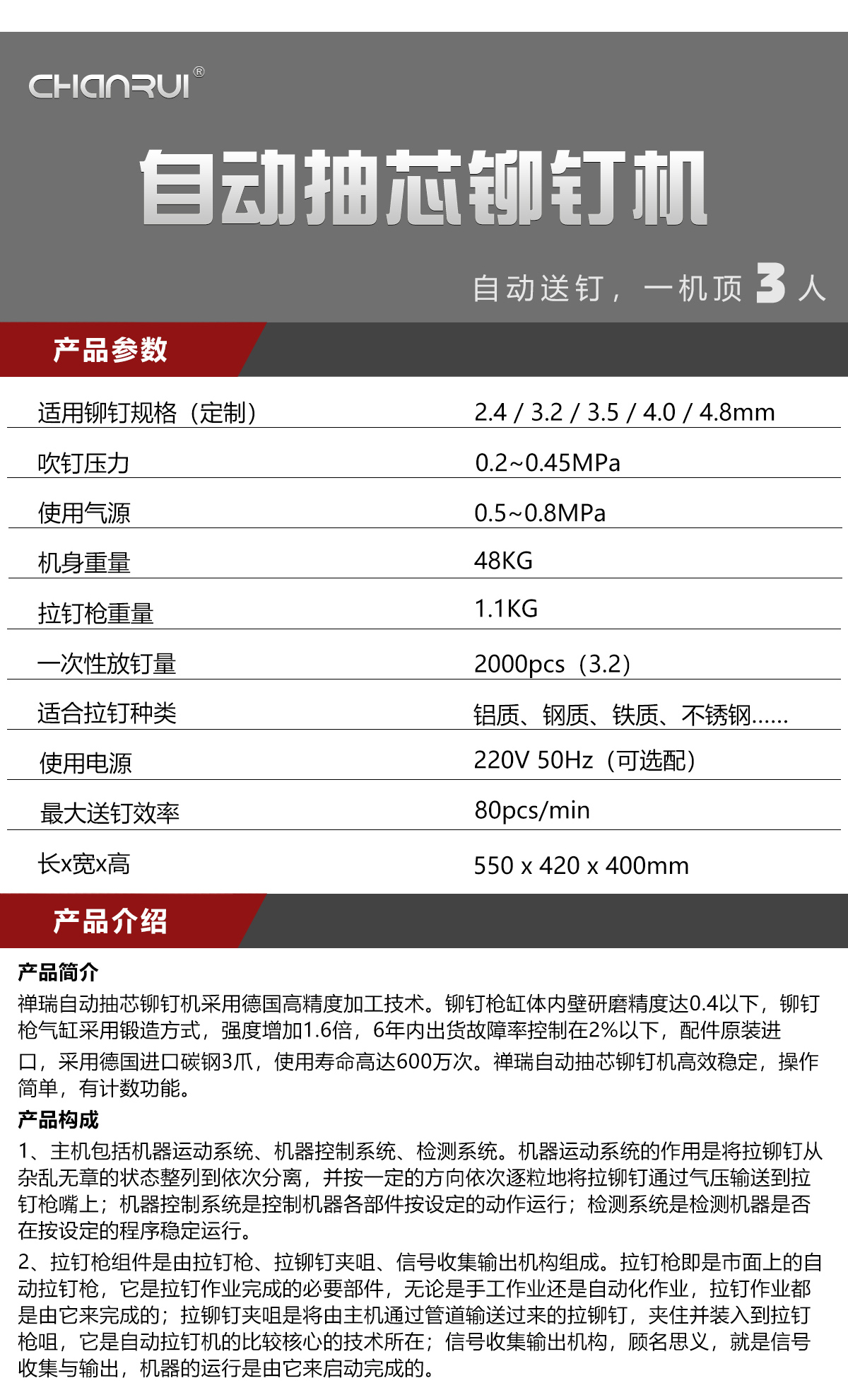

Automatic Riveting Machine 【Technical Data】
| Parameter | Specification | Description |
|---|---|---|
| Brand | CHANRUI | Direct sales from the source manufacturer |
| Riveting Capacity | 12800N | Standard-model pulling force, with customizable specifications |
| Cycle Speed | Approx. 80 cycles/min (approx. 1.2 sec/rivet) | Lighting-industry riveting equipment |
| Feeding Method | Automatic delivery by compressed air | — |

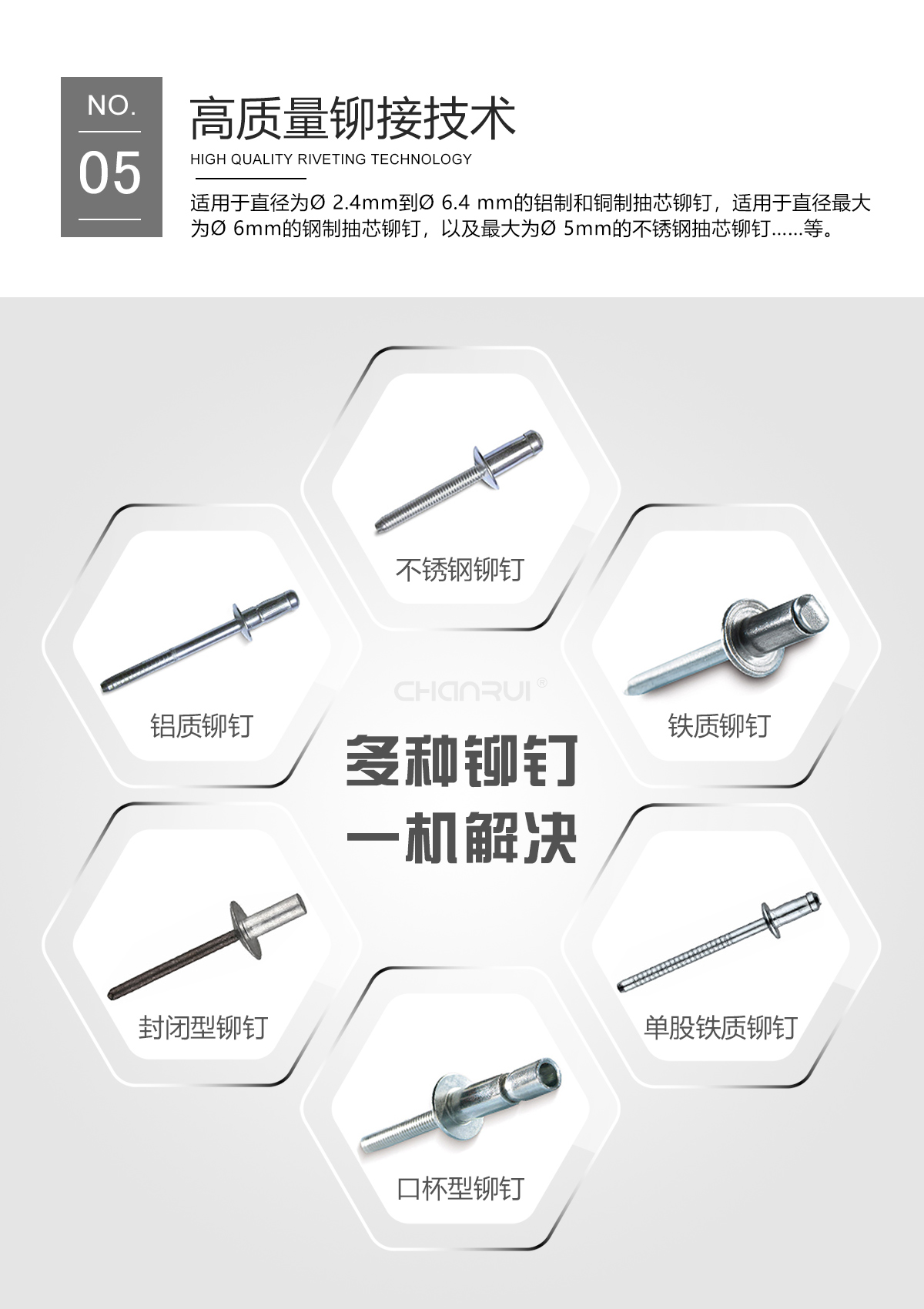

| Applicable Rivets | Aluminum, iron and stainless steel blind rivets | Customizable specifications |
| Control Method | PLC intelligent control | — |
| Working Voltage | 220V / 50Hz | — |
| Main Unit Dimensions | 555×420×400mm | Workbench and fixtures designed based on the workpiece |

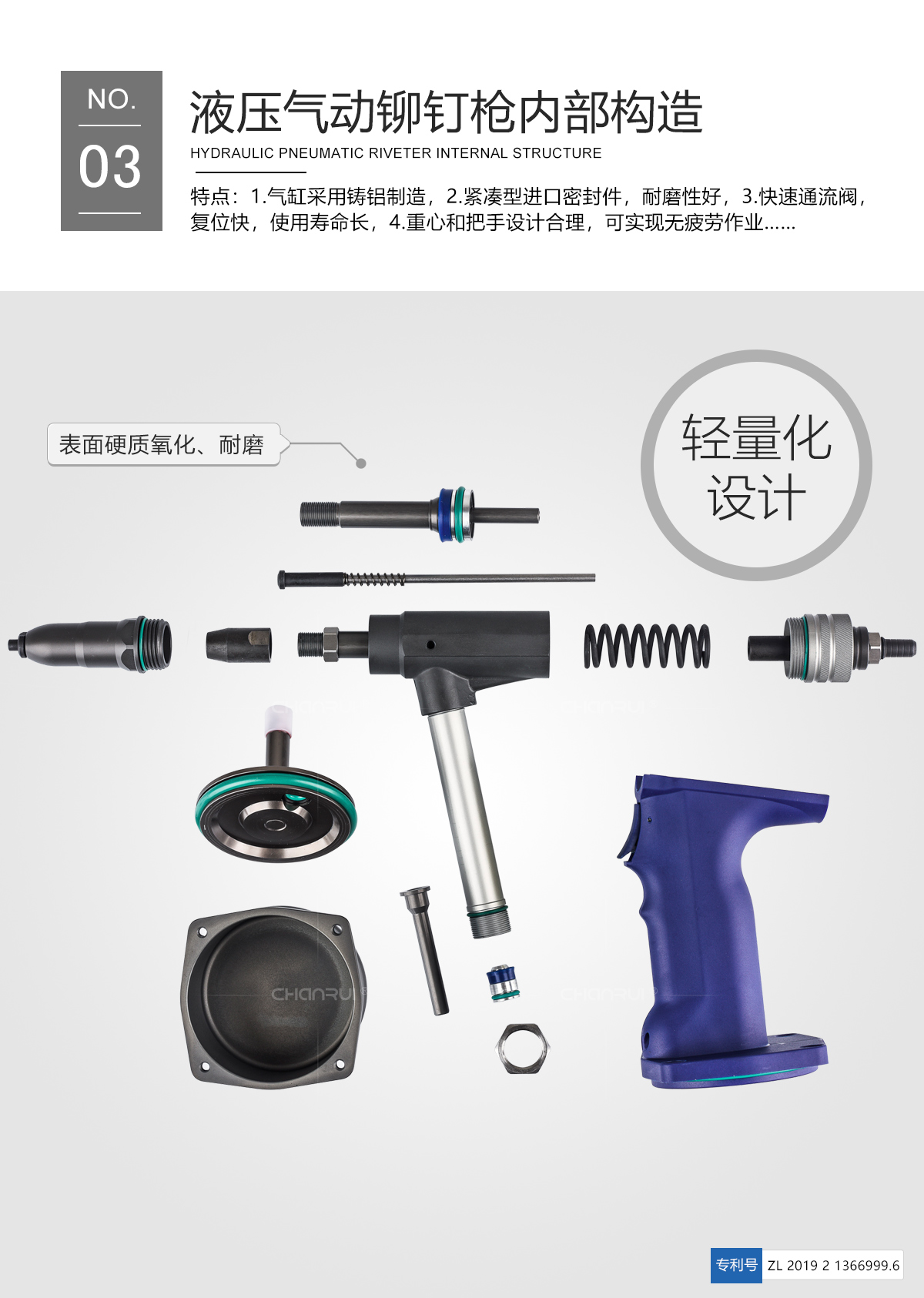

| Manufacturing Process | Cylinder inner wall grinding precision below 0.4 | Forged pipeline, strength increased by approx. 1.6x |
| Reliability | Outgoing failure rate approx. 0.3% (6-year statistics) | German imported carbon steel three-jaw lifespan approx. 6 million cycles |
| Warranty Service | 1-year warranty | Free nationwide delivery to your door |
Note: The above are common parameters for standard models. The actual configuration varies with rivet specifications, pulling force and non-standard workload, subject to solution confirmation. Customers nationwide can book a free on-site trial to verify with the actually measured cycle time and yield rate.
Automatic Riveting Machine 【Typical Applications】
Riveting operations across LED lighting, downlights, ceiling lights, lighting brackets, heat sinks and hardware accessories industries.
Automatic Riveting Machine 【Service Commitment】
CHANRUI provides free on-site trials and solution assessments for lighting-industry customers. You are welcome to bring lighting samples to our factory to verify riveting results.
